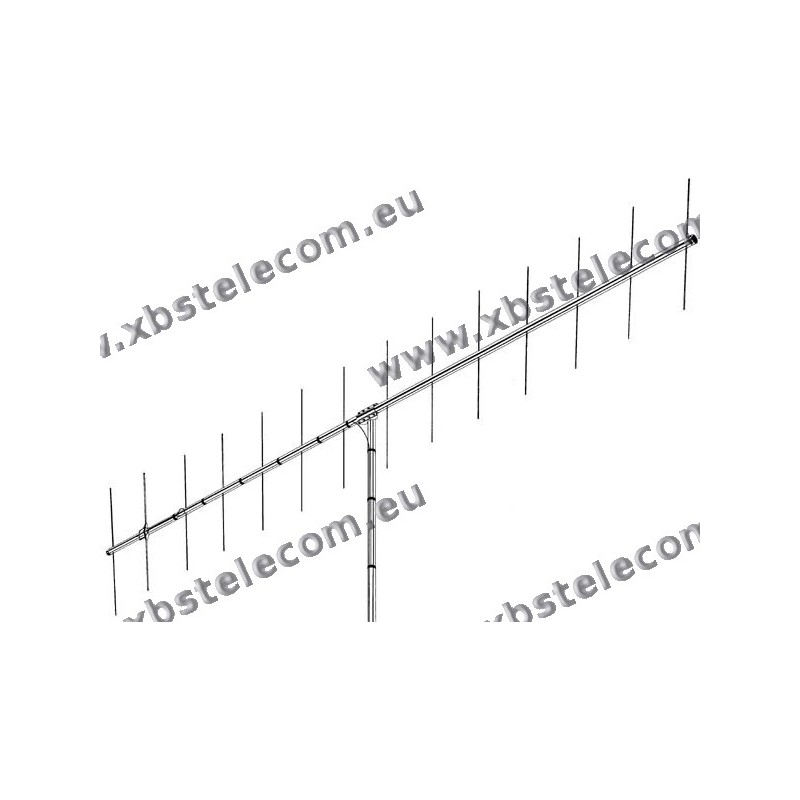

HY GAIN - VB-214FM - 14 éléments de 2 mètres View larger

Online only

HY GAIN - VB-214FM - 14 Element VHF

VB-214FM

New product

These 2 Meter FM beam antennas include Hy-Gains exclusive BetaMatch to provide exceptional Front-to-Back ratio and maximum obtainable gains.

The VB-214FM gives you a wide choice of 2 Meter Beam performance from which to choose.

Accepts up to 2 inch mast.

More details

Your current price:
159,00 €
Members of R.E.E.C & a sponsored club:
143,10 €

159,00 €


Product not deliverable for the moment.

More info

MECHANICAL SPECIFICATIONS:

- Length : 15'6 "(4.72 m);

- Elements Length : 39 1/2 "(1003 mm);

- Turning radius (maximum): 95 "(2.41 m);

- Wind Survival : 80 mph (129 kmph);

- Shaft diameter : 15/8 "to 2 1/16" OD (41 mm to 52 mm);

- Diameter : 1 1/4 "OD (32 mm);

- Wind area : 1.65 sq. ft. (vertical), 1.28 sq. ft. (horizontal);

- Net weight : 5.5 pounds (2.5 kg);

ELECTRICAL SPECIFICATIONS:

- Gain : 15.2 dBi (13.0 dBd);

- Front-to-back ratio : 20 dB;

- maximum SWR : 2: 1;

- Band length : MHz;

- Maximum power : 250 watts continuous, 500 watts PEP;

- Impedance : 50 ohms (with balun);

- Half power width : 35 ° (vertical, horizontal polarization);

- Distance : 12 "max., 6'10" min.

Reviews

Write a review

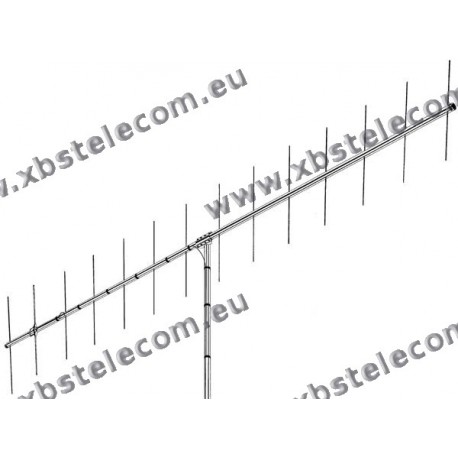

HY GAIN - VB-214FM - 14 Element VHF
