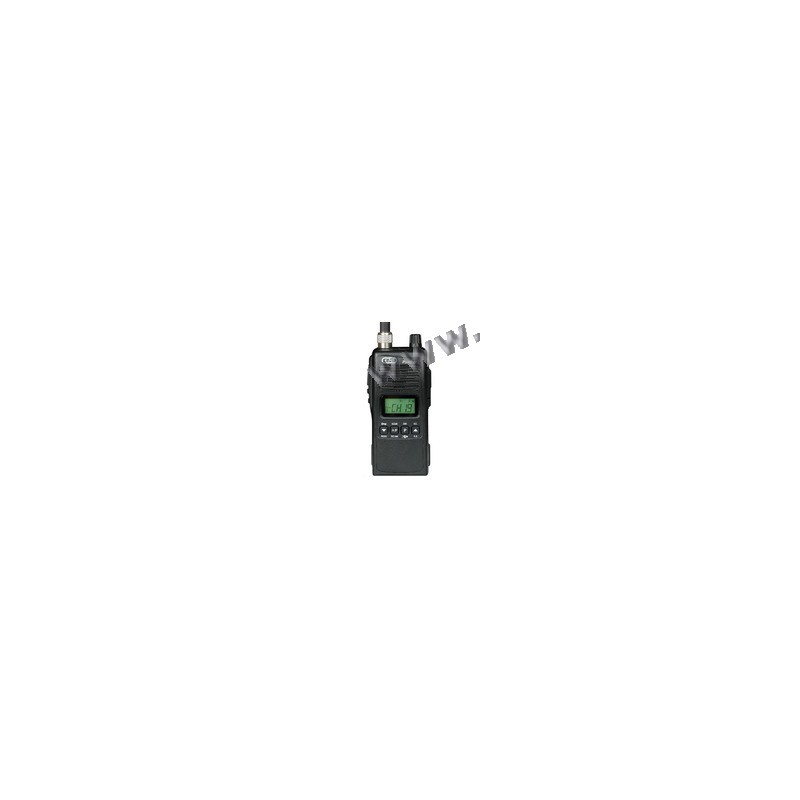

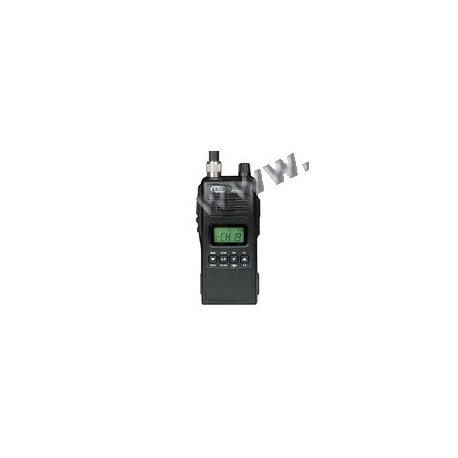

KPO - PANTHER - Multi Channel CB Handheld

K-PO Panther

HANDHELD CB TRANSCEIVER 40 CHANNEL AM / FM

• Multistandard
• Squelch 6 levels.
• Large multi-function LCD display with backlight.
• Channel display or relative frequency.
• Channel selector switch Up / Down.
• S-Meter.
• Scan function.
• Roger Beep.
• Dual watch.
• Channel 19 emergency pre-set.
• Switch High / low power.
• Keypad lock.
• Socket for external microphone / speaker connection with 2,5 / 3,5 mm mono

  GENERAL
• Frequency Range: 26 ~ 28MHz.
• Frequency Control: Phase Lock Loop (PLL) synthesizer.
• Channel spacing: 10KHz
• Modulation mode: AM/ FM
• Frequency Stability: ± 0.005%
• Channel step: 10KHz
• Maximum channel: > 40 channel
• Operating Temperature Range: -25°C to +50°C
• Input Voltage: 7.4VDC
• Working Voltage: 6.8~8.4V
• Antenna Connector: TNC with 50 ohms
• Dimensions: 120(H)X54(W)X35(D)mm
• Weight: About 250g(Including battery)

  TRANSMITTER
• AM /FM Power Output: FM: 1/4W | AM: Carry power 1/3W with 50% modulation
• Spurious Emissions: -55 dB.
• Carrier Suppression: -55 dB.
• Audio Frequency Response: 300Hz to 2.5KHz
• Max. Modulation FM +/- 2KHz | AM 100%

  RECEIVER
• AM Sensitivity For 10dB S/N: < 1.0 μV.
• FM Sensitivity For 12dB S/N: < 0.2 μV.
• Image Rejection Ratio: > -65 dB.
• Adjacent Channel Selectivity: > -55 dB.
• Automatic Gain Control (AGC) Figure Of Merit: 100 mV for 10 dB Change in Audio Output.
• Squelch Adjustable: 6 Levels
• Audio Output Power: > 0.5W
• Signal to noise ratio: > 40db
• Internal Speaker: 8 Ohms; 1 Watts.


  Packet Includes:
• 1x K-PO PANTHER Multi Channel CB Handheld
• 1x K-PO PANTHER BATTERY PACK
• 1x K-PO PANTHER AC ADAPTER LED
• 1X User manual (English)
