SIRIO - GAINMASTER - 27 Mhz Antenna - 5/8

GAINMASTER

New product

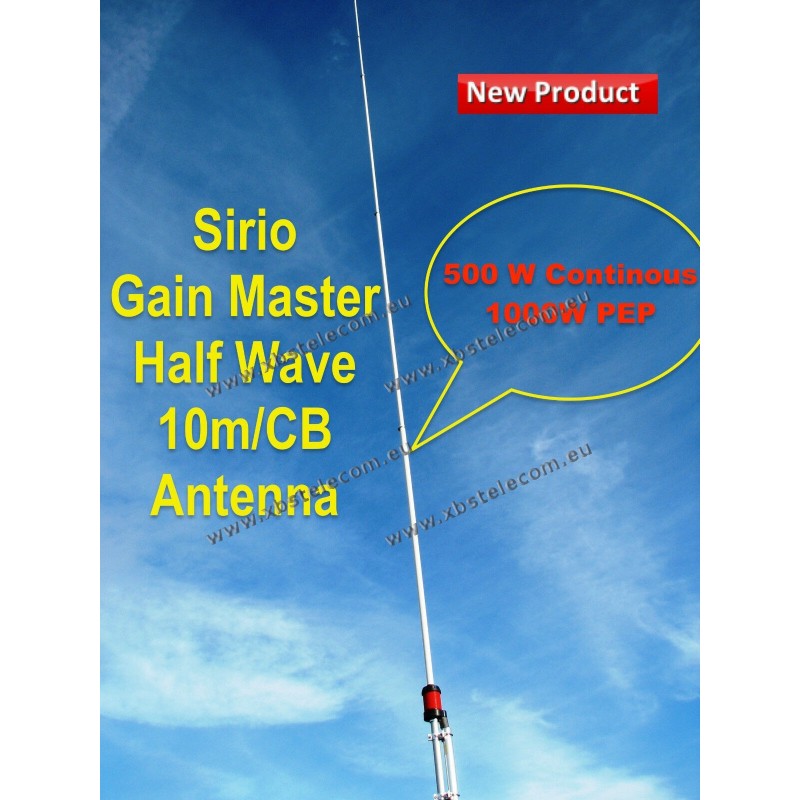

Gain-Master™ is a 0.625λ high tech fiberglass
base station antenna for CB and 10m amateur band

Completely designed by electromagnetic simulation to achieve the maximum gain and optimize the radiation pattern and bandwidth.

More details

By buying this product you can collect up to 2 loyalty points. Your cart will total 2 loyalty points that can be converted into a voucher of 2,00 €.


204,25 €


Product not deliverable for the moment.

Pay it by wire
and save an additional 1,43 €

More info



Engineered with the most advanced available technologies it is completly manufactured in Italy with high quality materials.

The new design of the radiant element (Patent Pending) works like a central feeded dipole so all RF currents on the radiator are in-phase and the ground plane radials are not necessary.

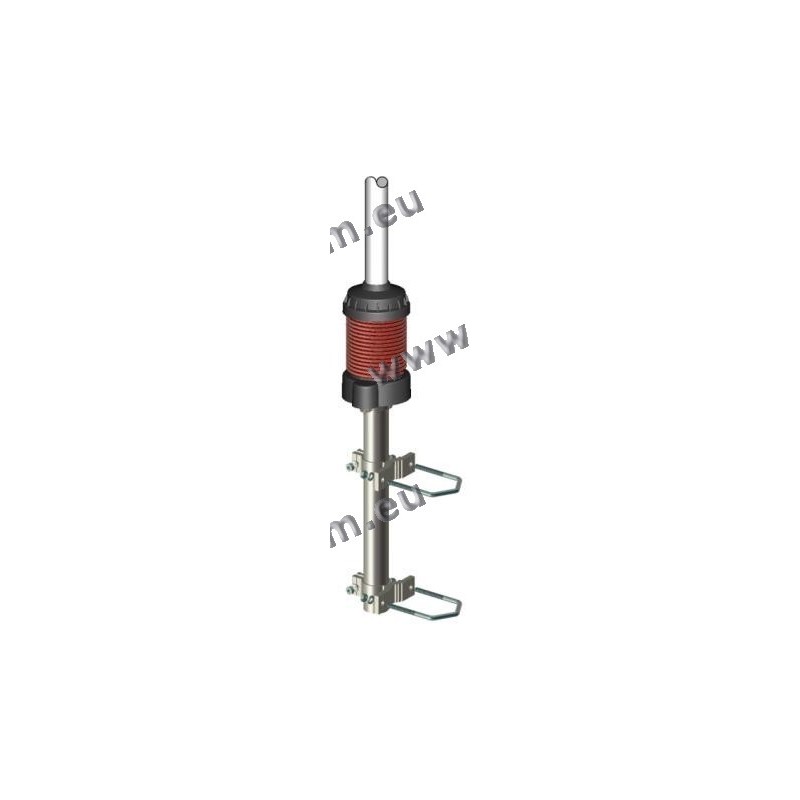

The coaxial coil at the bottom works like RF-choke for the optimum decoupling from mast and feeding line.

Made of telescopic fiberglass tubes, it is DC-grounded for the best protection from static discharges.

Gain-Master™ is the new reference standard in its class of antennas.

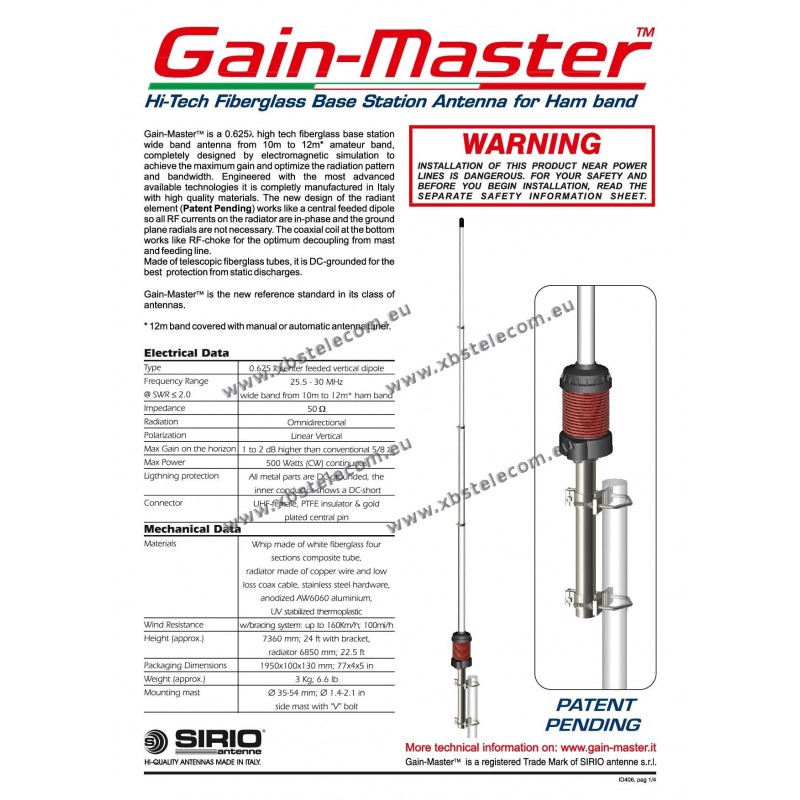

ELECTRICAL DATA

  • Type: 0.625 λ center feeded vertical dipole
  • Frequency Range: SWR ≤ 2.0 25.5 - 30 MHz 400 CB channel & 10m ham band
  • Impedance:50 Ω
  • Radiation: Omnidirectional
  • Polarization: Linear Vertical
  • Max Gain on the horizon: 1 to 2 dB higher than conventional 5/8 λ
  • Max Power: 500 Watts (CW) continuous, 1000 Watts (CW) short time
  • Ligthning protection: All metal parts are DC-grounded, the inner conductor shows a DC-short
  • Connector: UHF-female, PTFE insulator & gold plated central pin


    MECHANICAL DATA:

  • Materials: Whip made of white fiberglass four sections composite tube,
    radiator made of copper wire and low loss coax cable, stainless steel hardware, anodized AW6060 aluminium, UV stabilized thermoplastic.
  • Wind Resistance: up to 160 Km/h
  • Height (approx.): 7360mm with bracket, radiator 6850mm
  • Packaging Dimensions: 1950 x 100 x 130 mm
  • Weight (approx.): 3 Kg
  • Mounting mast: Ø 35-54 mm side mast with “V” bolt
