Microphones

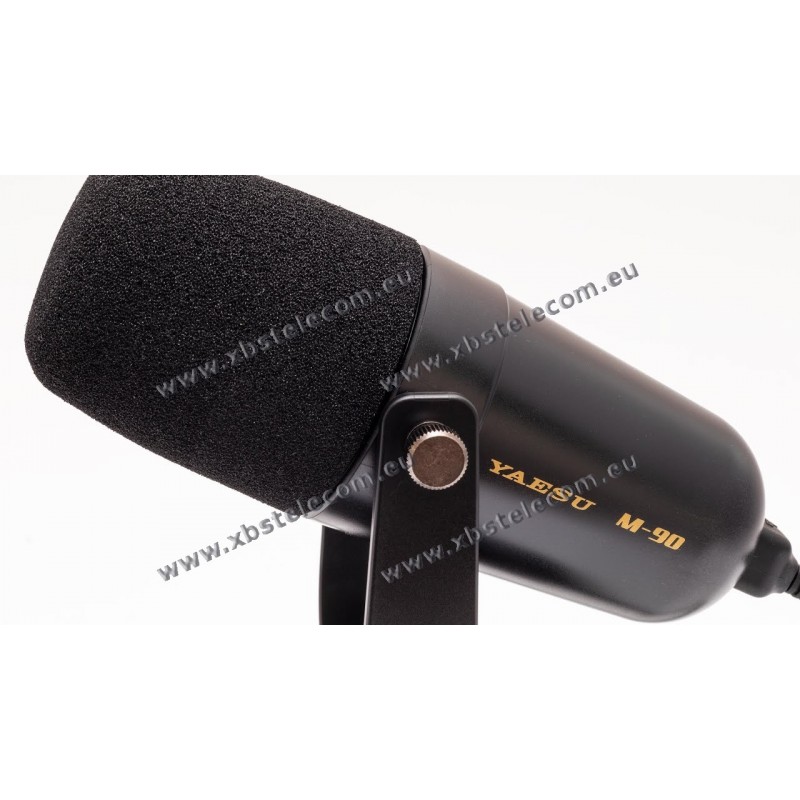

YAESU - M-90D - Desktop microphone
M-90D
New product
Brand new desktop microphone, compatible with Yaesu lines.
The M-90D uses a finely tuned dynamic microphone element to provide a rich low-mid frequency response, desirable for clear and concise conversation.
By buying this product you can collect up to 1 loyalty point. Your cart will total 1 loyalty point that can be converted into a voucher of 1,00 €.
Pay it by wire
and save an additional 1,23 €
More info
Supply voltage: 5.0 V DC ± 10%
Current consumption: 15 mA (TYP)
Microphone type: Dynamic frequency response: 30 - 17,000 Hz
Sensitivity: -60dB (1kHz 0dB = 1V / 1Pa)
Microphone impedance: 600 Ohm
Dimensions (W x H x D): 4.17 "x 7.56" x 4.98 "(106 x 192 x 126.5 mm) - Maximum with flat microphone
Weight (approx): (530g) without cable
Using the M-90D with Yaesu transceivers:
FT-817 / ND
FT-818ND
FT-857 / D
FT-891
FT-897 / D
FT-450 / D
FT-900
FT-991 / A
FT-847
FT-920
FT-950
FT-1000MP
FT-1000MP
MARK-V FT-2000 / D
FTDX1200
FTDX3000D
FTDX5000
FTDX9000
FTDX101D
FTDX101MP
FTDX10
FT-747 *
FT-840 *
FT-850 *
FT-990 * FT-1000 *
The M-90D works with the following transceivers. With models marked with an asterisk * Requires optional PSK-M100 “Microphone Power Kit”
Built-in Low-Cut filter creates clear and crisp audio characteristics by shaping the low frequency response (cut off at 340Hz, -6dB / octave).
An isolation transformer is integrated in the circuit board in order to enhance the audio quality.
An isolation transformer is integrated in the circuit board in order to enhance the audio quality.
