MANSON - SPA-8100 - switching power supply 10 amps

View larger

Online only

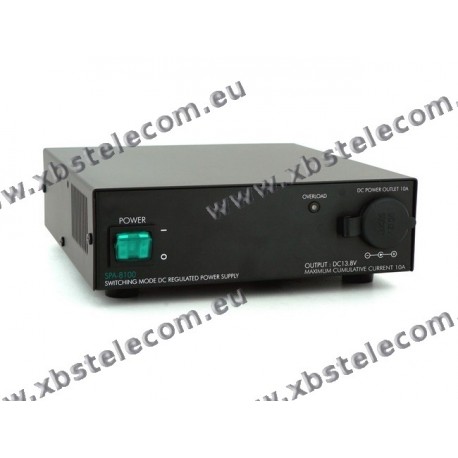

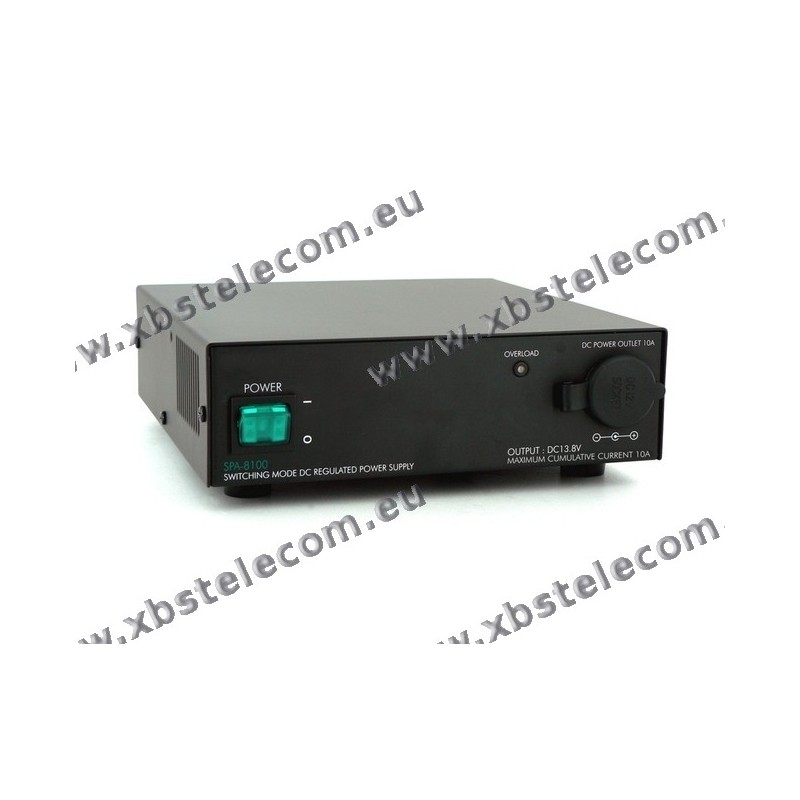

MANSON - SPA-8100 - Switching power supply 10 amps 13.8V

Reference: SPA-8100

Condition: New product

Compact switching power supply (switch mode)

Ideal for the power supply of radio communication devices (high RFI stability)

More details

By buying this product you can collect up to 1 loyalty point. Your cart will total 1 loyalty point that can be converted into a voucher of 1,00 €.

More info

Technical data

Operating voltage	230 VAC / 50Hz
Output voltage	13.8 volts DC (13.3 to 14.5 volts fine tuning)
Output current	10 amps constant 12 amps for a short time
Ripple & Noise	<50mVp-p, 5m Vrms
Load regulation	<100mV
Line regulation	<50mV
Displays & measuring units	Status bi-color LED red and green
DC connection sockets	screwable pole terminals on the back and cigarette connection socket on the front
cooling	passive cooling via housing (without fan)
safety	Protection against overload, overheating, short circuit, polarity reversal PFC Power Factor Control
processing	dark gray metal case
Dimensions (WxHxD)	181x63x190 mm
Weight	1.55 kg

EAN code: 4250158703940
Weight: 1.55 kg
