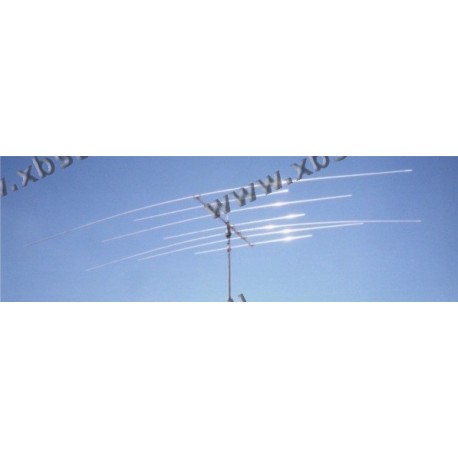

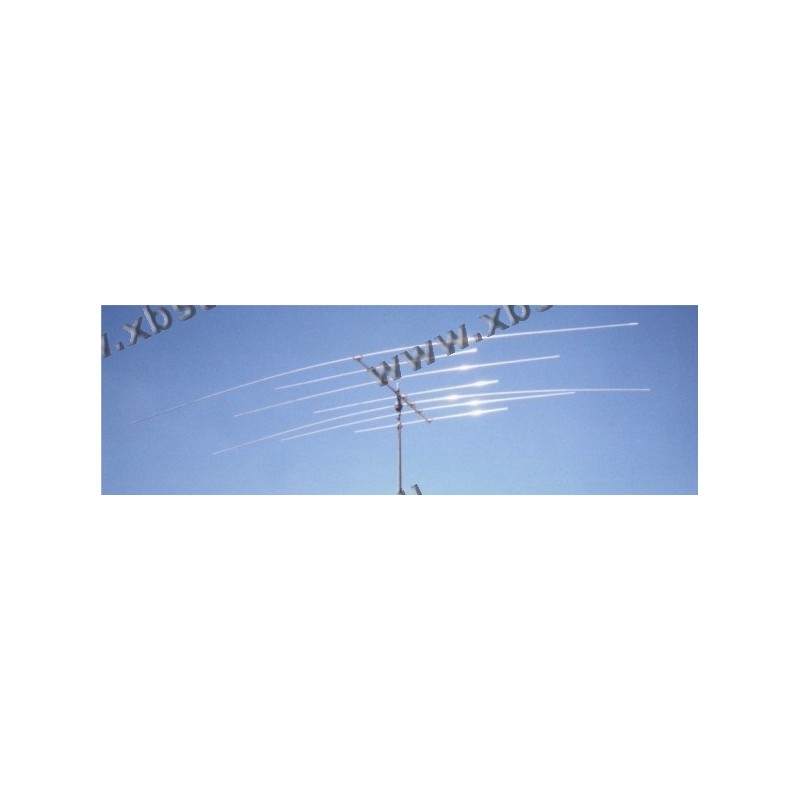

Optibeam - OB7-3 - 7 Element, 3 Band - 20 / 15 / 10 Agrandir l'image

Exclusivité web !

Optibeam - OB7-3 - 7 Element, 3 Band - 20 / 15 / 10

OB7-3

Nouveau produit

En achetant ce produit vous pouvez gagner jusqu'à 9 points de fidélité. Votre panier totalisera 9 points de fidélité pouvant être transformé(s) en un bon de réduction de 9,00 €.


999,00 €


Produit non livrable pour l'instant.

Payez le par virement bancaire
et économisez 6,99 €

En savoir plus

Bands   20 / 15 / 10
Gain (dBd) *   4,2 / 4,3 / 5,5
Gain (dBi) **   11,5 / 12,0 / 13,1
F/B (dB)   15 / 15 / 30
VSWR
14,00 - 14,19 - 14,35   1,5 - 1,0 - 1,4
21,00 - 21,25 - 21,45   1,6 - 1,0 - 1,4
28,00 - 28,50 - 29,00   1,2 - 1,0 - 1,5

Elements (number)   7
Active Elements   2 / 2 / 3
Max. Elementlength (m)   10.96
Boomlength (m)   4.1
Turning Radius (m)   5.83
Feedlines (number)   1 Coax 50 Ohm
Weight (kg)   25
Windload at 130 km/h   438 N / 0,55 m² / 5,9 feet²

* = average gain over dipol in free-space / for comparison: 2 el monobander 4 dBd, 3 el 5-6 dBd
** = average gain at 20m above ground (= dBd + 2.15 dB isotropic + about 5 dB ground reflection)
